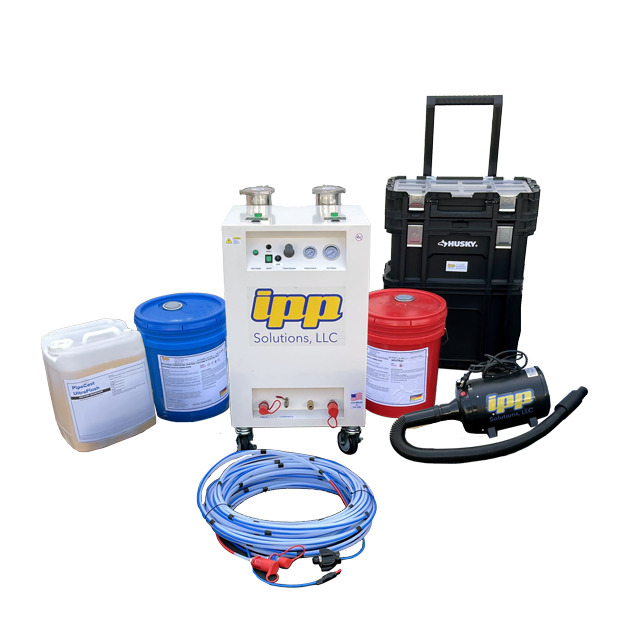

PipeCaster™ Pro Mini Starter Kit

Description

» Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 1.0 horsepower
air compressors in the industry having only 40 decibels of sound.
» The powerful 1.0 HP motor operates at only 1400 RPM creating less noise, vibration and
creating less wear.
» The MP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty
cycle and allow for longer continuous run times (i.e. may run continuously at 1.5 cfm @90
PSI for up to 4 hours, or intermittently 30-40 minutes at a time at 3.0 cfm @90 PSI).*
» The Motor/Pump is tested for a minimum pump life of 4000 hours before service. 30% more
life before repair.
» The large 8.0 gallon steel air tank is internally coated with epoxy to prevent any corrosion.
» The cabinet has two latching doors that allow for easy access to the compressor and
components.
» The two cabinet exhaust fans are used to remove the air from the cabinet to a cool working
condition for the air compressor.
» The 4 caster wheels makes moving the air compressor from location to location very easy.
» The complete Soundproof Cabinet is 125 lbs. and made of a sturdy metal frame with 1/4”
Acoustic Sound Proofing Foam insulation to reduce the noise by 30%.
» This air compressor is ideal for anyone working inside (office, shop, store, warehouse, or
home) where noise is a major issue.

Specifications:

Weight: Basic Pump 125 lbs. dry.
Dimensions: H 32″, W 20”, H 21”
Motor: CNC Motor with Gearbox
Pumps: Internal rotary gear pumps
Tanks: 2x 1.3 gal/ea
Power: 110 V 15 A
Wheels: 4”, swivel wheels with brakes
Control: 2 dual port manifold, digital speed control. Low voltage control line to applicator, programmable
Viscosity: approx. 50 – 2000 cps, depending on material
FlowRate: approx. 0.1 to >1 gallon per minute
Ratios: 1:1 by volume ratio standard, other ratios available

» Non-ASME Air Tank
» 18 Month Limited Warranty
» Commercial Use: Refer to State & City Codes

Includes:
» 2 Pneumatic Spray Maxi Motor
» 1 Set Air-hoses in 6mm 25 feet
» 1 Set PVC hoses 8mm 25 feet
» 1 Toolbox with Tools
» Spare Parts

Additional information

Shipping not included*	*You will recieve an email with complete freight cost for this item. Or email us for estimated shipping cost.
Get financed	Get financed Click here
Includes:	2 Pneumatic Spray Maxi Motor 1 Set Air-hoses in 6mm 25 feet 1 Set PVC hoses 8mm 25 feet 1 Toolbox with Tools Spare Parts
Specifications:	Weight: Basic Pump 125 lbs. dry. Height: 32" Width: 20" Length: 21” Motor: Stepper with Gear Pumps: Internal rotary gear pumps Tanks: 3 gal tanks/ea Power: 110 V 15 A Wheels: 4”, swivel wheels with brakes Control: 2 dual port manifold, digital speed control. Low voltage control line to applicator, programmable Viscosity: approx. 50 – 2000 cps, depending on material FlowRate: approx. 0.1 to >1 gallon per minute Ratios: 1:1 by volume ratio standard, other ratios available
Features	Ultra Quiet – Only 40 decibels Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs. Two pressure control gauges One – Female industrial "Push to Connect" quick connector Thermal Overload Protector 115 PSI Maximum Pressure Kick On Pressure 85 PSI – Kick Off Pressure 115 PSI Power: 110v / 60 Hz Low Amp Draw – Only 7.6 Amps Duty Cycle: – 70/30* Maximum continuous running 30-60 min. (Depending PSI & CFM) Tank fill rate from empty to full 3 minutes Non-ASME Air Tank 18 Month Limited Warranty * Commercial Use: Refer to State & City Codes
